LIFT AMBARCATIUNE BASTA BOATLIFTS - HYDRAULIC - ALUMINUM - 3039 KG / 122-155 CM

This self contained hydraulic boat lift needs no shore power!

Accessories available include a  “deep V” cradle design enabling boat owners to configure the boat lift for a custom Boat-to-Bunk™ fit. The bunk rails can be adjusted for width and angle to accommodate a wide variety of hull shapes and skeg placements. Universal fittings make it easier than ever to connect accessories such as a catwalk or centering guide. As the boat raises and lowers on the lift, the accessories move with it. No welding is required, giving boat owners a flexible and elegant solution that can be temporary or permanent.

The patented load-dispersing clamp strengthens the boat lift where necessary and allows it to be lighter elsewhere. The hand-in-glove fit between the beefy clamp and its rail improves the load transfer for the pivot pins, reducing local stresses. The clamp supporting each pivot pin is bolted instead of welded in place to allow the aluminum rail to retain its maximum strength.

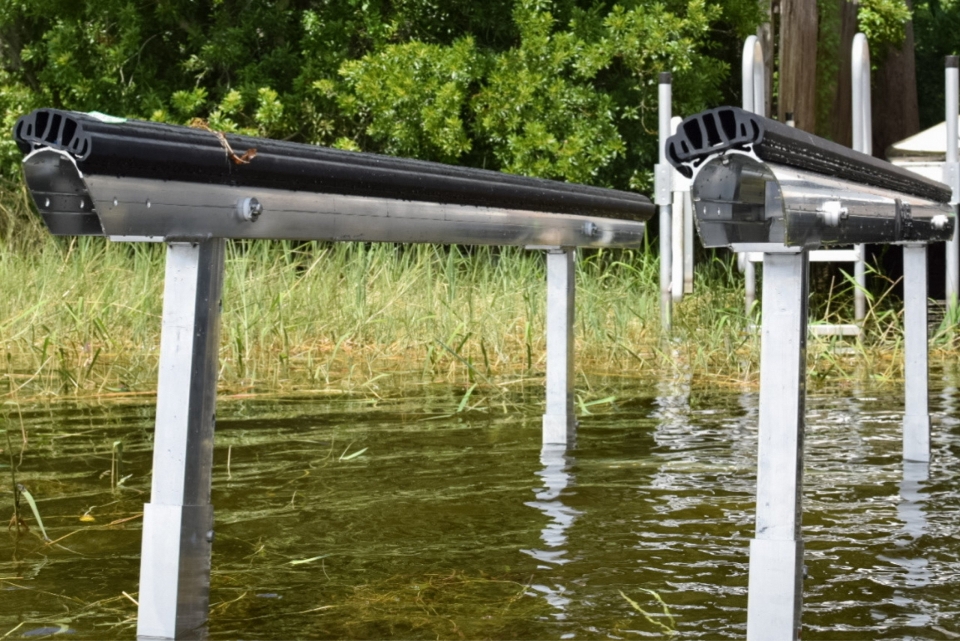

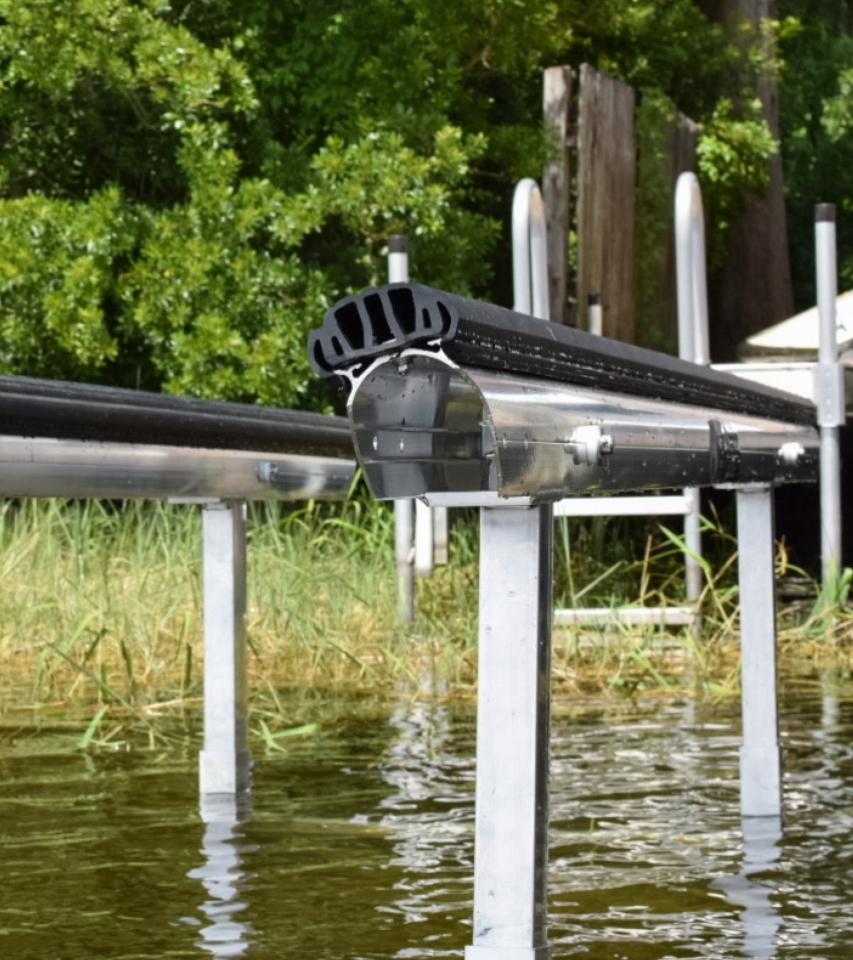

Load transferring clamp             Easy to adjust legs

• Optional Boat-to-Bunk™ fit with adjustable bunk rails
• Plug-and-play fittings for easy accessory attachment (sold separately)
• Catwalk
• Load Guides
• Centering Guides
• Proprietary aluminum extrusions
• Delrin® bushings
• Over-Center ™ gravity locking design
• Super Strut ™ design
• No-weld cylinders
• Stainless steel cylinder fittings & hose ends
• Duplex-bonded synthetic hydraulic hoses
• Spartan Power battery cables
• Stainless steel hardware
• Hydraulic power unit is housed in a strong and attractive white fiberglass dock box with stainless steel hardware and lockable lid
• Two wireless remote control fobs
• Manual control switches in power box
• 12 Watt solar panel securely mounted on top of the fiberglass box. Can be remotely installed or used with a simple “float” charger
• Hydraulics that use a special long-life, environmentally friendly fluid
