LIFT GOLDENBOATLIFTS 2016 GOLDEN SEA-DRIVE

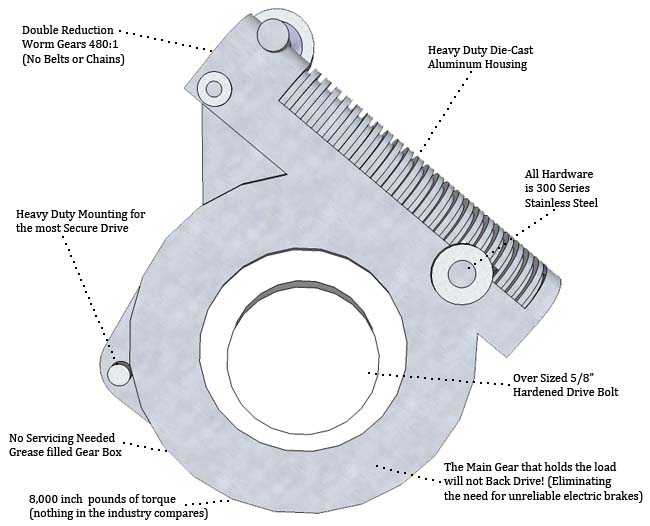

Golden Boat Lifts® has the finest drive unit ever introduced for a boat lift system. The "Golden Sea-Drive®" is an Aluminum Die-Cast Enclosure, Housing Dual Worm Gear Reducers. This configuration assures that the gear box will never back drive. We do not use electric brakes, as even the best electric brakes fail in a harsh waterfront environment. Our system connects the Golden Sea-Drive® directly to the boat lift drive shaft with an over sized 5/8" hardened drive pin. This is needed due to the high output torque the Golden Sea-Drive® produces.

SEA-DRIVE WARRANTY

Golden Boat Lifts® exclusive Golden Sea-Drive®, has a 10 year warranty on the housing and gears for customers that have regular maintenance preformed on their boat lift.

GEARING

The high-speed gear set is a 5:1 for high efficiency. It utilizes a production gear set from an industrial product line designed to Golden Sea-Drive® specifications. The gear is made from a heat-treated alloy and meshes with a bronze worm gear.
The low-speed gear set is a high-ratio (96:1) designed to have an extremely low helix angle to prevent any possibility of back drifting. The large center distance of the low-speed gear set results in lower tooth loads for a given output torque.

LUBRICATION

The Golden Sea-Drive® reducer is filled with a proven high-quality lubricant. This high-viscosity grease is capable of handling the high shear stress inherent in heavily loaded boat lift gears. This grease also eliminates the potential for any leakage.

MOUNTING

The Golden Sea-Drive® is shaft-mounted with dual flanges to accommodate different drive positions. The drive is connected to the lift shaft with a 5/8" grade "5" cross bolt. This is the largest drive bolt in the industry. The Golden Sea-Drive® produces over 8000 inch pounds of torque and would break the smaller bolts used by other boat lift companies.
